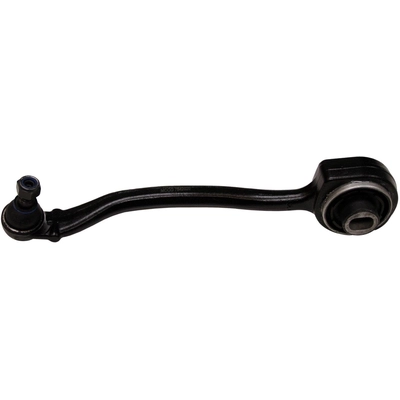

Moog R Series Control Arms With Ball Joint is the right choice for a value-driven replacement part. Moog introduced the R-Series arms to provide replacements for a wide range of domestic and foreign vehicles. The RK Series line of control arms has OE fit and form geometry alignment. The arms with pre-installed OE style bushings mostly include ball joints. These ball joints are not serviceable like the CK arms. All R Series line of control arms are produced as per Moog validated design and construction, providing quality at a less expensive price.
SKU: wnmjjgmk9n
| Adjustable | No |
|---|---|
| Anti Lock Brake Sensor Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bolt Circle Diameter(in) | 4.500 |
| Bolt Circle Diameter(mm) | 114.300 |
| Brake Pilot Diameter(mm) | 81.900 |
| Bushing Material | Rubber |
| Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Material | Forged Steel |
| Control Arm Maximum Length | 13.460 |
| Control Arm Maximum Length(in) | 13.460 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter(mm) | 159.900 |
| Flange Offset(mm) | 48.300 |
| Flange Shape | Triangle |
| Grease Fitting Included | No |
| Hub Pilot Diameter(mm) | 85.000 |
| Mounting Hardware Included | Yes |
| Part Number | RK80533 |
| Pre Greased | Yes |
| Spline Quantity | 27 |
| Wheel Pilot Diameter(mm) | 70.500 |
| Wheel Stud Quantity | 5 |
| Year | Make | Model |
|---|---|---|
| 2002, 2003, 2004, 2005, 2006, 2007 | MERCEDES BENZ | C230 |
| 2001, 2002, 2003, 2004, 2005 | MERCEDES BENZ | C240 |
| 2006, 2007 | MERCEDES BENZ | C280 |
| 2002, 2003, 2004 | MERCEDES BENZ | C32 |
| 2001, 2002, 2003, 2004, 2005 | MERCEDES BENZ | C320 |
| 2006, 2007 | MERCEDES BENZ | C350 |
| 2005, 2006 | MERCEDES BENZ | C55 |
| 2003, 2004, 2005 | MERCEDES BENZ | CLK320 |
| 2006, 2007, 2008, 2009 | MERCEDES BENZ | CLK350 |
| 2003, 2004, 2005, 2006 | MERCEDES BENZ | CLK500 |
| 2003, 2004, 2005, 2006 | MERCEDES BENZ | CLK55 |
| 2007, 2008, 2009 | MERCEDES BENZ | CLK550 |
| 2007, 2008, 2009 | MERCEDES BENZ | CLK63 |
| 2006, 2007, 2008 | MERCEDES BENZ | SLK280 |
| 2009, 2010, 2011 | MERCEDES BENZ | SLK300 |
| 2005, 2006, 2007, 2008, 2009, 2010, 2011 | MERCEDES BENZ | SLK350 |
| 2005, 2006, 2007, 2008, 2009, 2010 | MERCEDES BENZ | SLK55 |
| Specifications | Descriptions |
|---|---|
| No Specifications | |
