SKU: 3a8mk9767e
| ABSRing Yes/No | No |
|---|---|
| Bolt Circle Diameter(inch) | 4.5 |
| Bolt Circle Diameter(mm) | 114.3 |
| Bolt Hole(inch) | 0.4961 |
| Bolt Hole(mm) | 12.6 |
| Center Hole Diameter(inch) | 2.9921 |
| Center Hole Diameter(mm) | 76.0 |
| Discard Thickness(inch) | 0.33071 |
| Discard Thickness(mm) | 8.4 |
| Nominal Thickness(inch) | 0.394 |
| Nominal Thickness(mm) | 10.0076 |
| Numberof Bolts/Holes | 5 |
| Part Number | B31583 |
| Rotor Height(inch) | 2.41 |
| Rotor Height(mm) | 61.214 |
| Rotor Inner Diameter(inch) | 6.6142 |
| Rotor Inner Diameter(mm) | 168.0 |
| Rotor Outside Diameter(inch) | 10.32 |
| Rotor Outside Diameter(mm) | 262.128 |

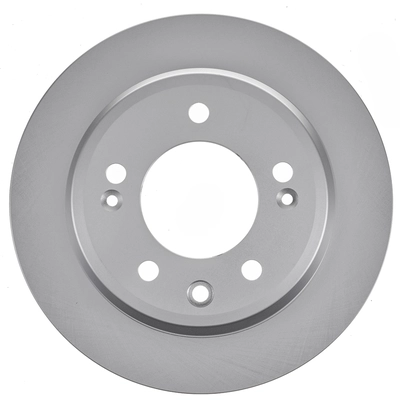

| Rotor Style | SOLID (DRUM IN HAT) |
| Weight(kg) | 3.9417 |
| Weight(lbs) | 8.69 |
| Year | Make | Model |
|---|---|---|
| 2009, 2010, 2011, 2012 | HYUNDAI | ELANTRA |
| 2010, 2011, 2012, 2013, 2014, 2015 | HYUNDAI | TUCSON |
| 2015 | HYUNDAI | TUCSON FUEL CELL |
| 2011, 2012, 2013, 2014, 2015, 2016 | KIA | SPORTAGE |
| Specifications | Descriptions |
|---|---|
| No Specifications | |
