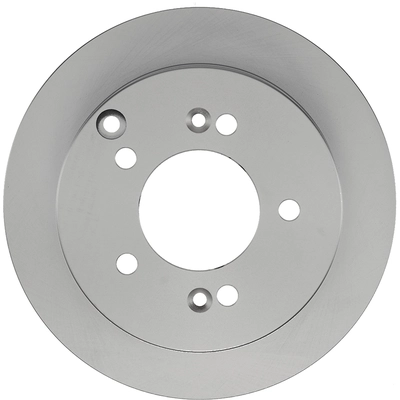

BREMSEN – B31339 – Rear Disc Brake Rotor

Description

ABSRing Yes/No | No
Bolt Circle Diameter(inch) | 4.5
Bolt Circle Diameter(mm) | 114.3
Bolt Hole(inch) | 0.4961
Bolt Hole(mm) | 12.6
Center Hole Diameter(inch) | 2.99
Center Hole Diameter(mm) | 75.946
Discard Thickness(inch) | 0.331
Discard Thickness(mm) | 8.4074
Nominal Thickness(inch) | 0.394
Nominal Thickness(mm) | 10.0076
Numberof Bolts/Holes | 5
Part Number | B31339
Rotor Height(inch) | 2.4
Rotor Height(mm) | 60.96
Rotor Inner Diameter(inch) | 6.5709
Rotor Inner Diameter(mm) | 166.9
Rotor Outside Diameter(inch) | 10.31
Rotor Outside Diameter(mm) | 261.874
Rotor Style | SOLID (DRUM IN HAT)
Weight(kg) | 4.3545
Weight(lbs) | 9.6
