Product

Description

ABSRing Yes/No | No
Bolt Circle Diameter(inch) | 4.52756
Bolt Circle Diameter(mm) | 115.0
Bolt Hole(inch) | 0.5591
Bolt Hole(mm) | 14.2
Center Hole Diameter(inch) | 2.78
Center Hole Diameter(mm) | 70.612
Discard Thickness(inch) | 0.413
Discard Thickness(mm) | 10.4902
Nominal Thickness(inch) | 0.474
Nominal Thickness(mm) | 12.0396
Numberof Bolts/Holes | 5

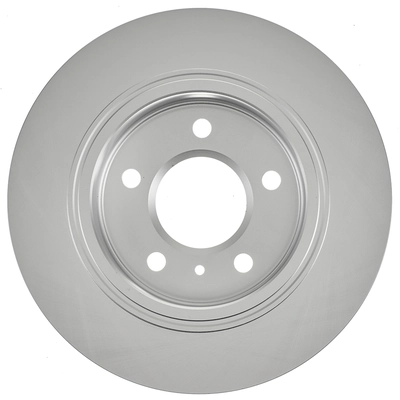

Part Number | B55127
Rotor Height(inch) | 1.94
Rotor Height(mm) | 49.276
Rotor Inner Diameter(inch) | 7.7756
Rotor Inner Diameter(mm) | 197.5
Rotor Outside Diameter(inch) | 11.496
Rotor Outside Diameter(mm) | 292.0
Rotor Style | SOLID
Weight(kg) | 5.8876
Weight(lbs) | 12.98
